Steam sterilizers | Laboratory autoclaves
with round and rectangular chambers
We manufacture laboratory autoclaves for:
- Microbiological laboratories
- Quality control in pharmaceutical industry and food & beverage
- Research (e.g. universities)
- Medical diagnosis (waste sterilization)
- Material tests
Photo: AlexPhototest | stock.adobe.com
MADE IN GERMANY
Product range of laboratory autoclaves with a round chamber
Autoclaves with a round chamber provide uniform heat distribution and efficient sterilization through optimized steam circulation. Their round shape allows for better space utilization and facilitates cleaning, as there are no corners where residues can accumulate. Additionally, they ensure even pressure distribution, which enhances safety and reduces material costs. Ideal for uniform sterilization and easy maintenance.
Laboklav 25
- 25-liter chamber volume
- configured as a tabletop unit
- available in red with a glass lid for observing processes inside the chamber colored LEDs visualize operational status
- sterilization of liquids, glassware, instruments, and waste
- basic unit optionally with:
- active cooling (M)
- pre- and drying vacuum (V)
- exhaust filtration (FA) - extensive accessories:
baskets, trays, bowls, insert rack with sieve bowls, condensate collection container
Laboklav 25
The Laboklav 25 is designed for easy operation and handling. After loading, the chamber door is gently pressed and automatically locked. An integrated tank with level sensors serves as a reservoir for feed water and a collection point for condensate, both of which can be drained separately. In all liquid programs, the temperature is monitored directly in the medium by a standard flexible reference sensor PT100; this prevents the chamber from opening if the medium temperature is too high (thermal barrier according to IEC 61010).

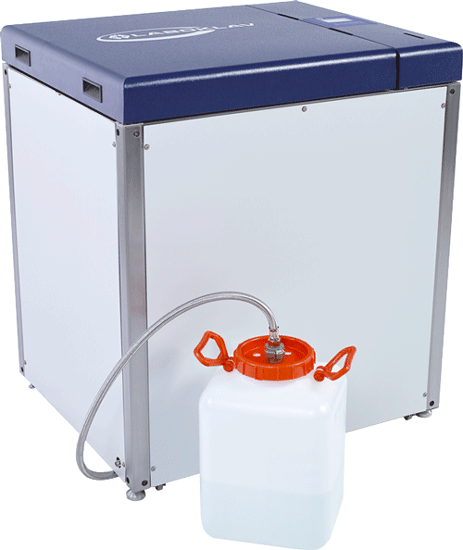

Laboklav ECO 80 and 135
- configured as a tabletop unit
- configured as a floor-standing unit
- available in three different colors
- chamber volumes of 80 and 135 liters
- sterilization of liquids, instruments, and waste
- basic unit optionally with:
- active cooling (M)
- exhaust filtration (FA) - extensive accessories:
baskets, buckets, insert shelves, lifting device for heavy loads, condensate collection container
Laboklav ECO 80 and 135
The Laboklav Eco 80 and 135 are always configured as floor-standing units. A standard flexible media sensor monitors the temperature directly in the medium in all liquid programs and prevents the opening of the chamber door if the medium temperature is too high (thermal barrier according to IEC 61010). To reduce cycle times in liquid sterilization, the unit can be equipped with an air cooling system
Laboklav 55-195
- available as a floor-standing or tabletop unit
- available in three different colors
- chamber volumes of 55 to 195 liters
- sterilization of liquids, glassware, instruments, and waste
- basic unit optionally with:
- active cooling (M)
- support pressure (S)
- fan (L)
- pre- and drying vacuum (V)
- exhaust filtration (FA) - extensive accessories:
baskets, buckets, insert shelves, lifting device for heavy loads, loading systems, stands, condensate collection container
Laboklav 55-195
The Laboklav 55-195 offers you flexible and individual installation and equipment options. The chamber can be easily opened and closed using a motor. A standard flexible reference sensor PT100 monitors the medium temperature in liquids, ensuring a safe process (thermal barrier according to IEC 61010). The evaporative condensation for the protection of disposal lines is also integrated as standard.
POWERFUL. RELIABLE. SAFE.
Sterilization device Laboklav ECO Wastewater
The sterilization of large liquid containers always involves very long cycle times. Due to the volume and specific thermal properties of the liquids, the sterilization of large liquid containers typically requires long cycle times. This is because the sterilization temperature must be evenly reached throughout the entire container and maintained for a sufficient period to ensure the complete destruction of all microorganisms. Factors such as the thermal conductivity of the material, the heat capacity of the liquid, and the evaporation properties play a crucial role. Additionally, aspects like the homogeneity of the liquid and potential barrier effects from the container material must also be considered, which can further prolong the sterilization process.
Laboklav ECO Wastewater
Areas of Application:
- destruction of large volumes of cell culture fluids, e.g., from bioreactors
- destruction of large volumes of biologically contaminated liquids, e.g., condensate from laboratory air conditioning systems
Laboklav ECO Wastewater
Specifically designed for this application, the Laboklav ECO Wastewater can sterilize up to 100 liters of liquid media directly in the chamber within approximately 4 hours.
After filling with only liquid media, the chamber lid is automatically closed. The liquid is heated to the sterilization temperature and maintained for a defined period. Once the sterilization phase is complete, the chamber is automatically emptied using compressed air. The disposal lines are protected from excessive temperatures by a temperature-dependent mixing of tap water.
All autoclaves in the Laboklav ECO Wastewater series come standard with an integrated needle printer, exhaust filtration, and are colored red as a symbol of destruction sterilization.
That's why an autoclave from SHP Steriltechnik:
All devices are equipped to sterilise:
- Liquids in open and lightly closed vessels
- Solid goods
- waste
All devices are equipped with a media probe (PT100) and a thermo locking device for liquid sterilisation.
A unique construction principle:
- Clear and easy-to-understand device structure
- One display + one board
- One type of valve
- One motorized closing mechanism
Optimization and Customization of Cycles for Tailored Customer Solutions:
- Reproducible cycles
- Finely parameterisable programs for creating customer-specific programs
- Calibrated measuring sections for all process relevant sensors (Tk, Tr, Pk)
- Qualification run / temperature profile with data loggers made in production
EFFICIENT. INNOVATIVE. RELIABLE.
Product range of laboratory autoclaves with square chamber
An autoclave with a square chamber maximizes interior space for more efficient sterilization of larger items, especially in pharmaceuticals, medicine, and research. The shape ensures uniform steam distribution and consistent results. Additionally, it facilitates cleaning and maintenance. These autoclaves are ideal for applications with high sterilization volumes and provide durable, reliable performance for demanding production processes.
Laboklav 44x
- chamber Volume: 1 / 1.5 STE (103/150 liters)
- automatic vertical sliding doors
- integrated steam generator
- chamber, heating jacket, sliding door, and casing made entirely of high-quality stainless steel
- 7" color display with touchscreen
- 19 programs + 2 test programs
- standard Features:
- Vacuum system (V) and water-saving cooling system - optional for the base unit:
- rapid cooling without/with support pressure (M+S)
- flexible media sensor
- exhaust filtration (FA)
- barrier for gas-tight installation - extensive Accessories:
transport and loading system, baskets, tubs, compressor, printer, or software
Laboklav 44x
The Laboklav 44x is a compact autoclave for small to medium volumes of sterilization goods or as an additional unit in large central sterilization facilities. It is available in one-door or two-door configurations. With an optional flexible media sensor, the temperature is monitored directly in the medium during all liquid programs, preventing the chamber door from opening if the medium temperature is too high (thermal barrier according to IEC 61010).
Laboklav 66xx
- chamber Volume: 4-12 STE (334-897 liters)
- automatic vertical sliding doors
- integrated steam generator
- chamber, heating jacket, sliding door, and casing made entirely of high-quality stainless steel
- 7" color display with touchscreen
- 19 programs + 2 test programs
- standard Features:
vacuum system (V) and water-saving cooling system - optional for the base unit:
- rapid cooling without/with support pressure (M+S)
- flexible media sensor
- exhaust filtration (FA)
- barrier for gas-tight installation - extensive Accessories:
transport and loading system, baskets, tubs, compressor, printer, or software
Laboklav 66xx
The Laboklav 66xx is a versatile autoclave with a wide range of applications for larger volumes of sterilization goods in large central sterilization facilities or in industrial settings. It is available in one-door or two-door configurations. The optional flexible media sensor ensures safe sterilization of liquids by measuring in the reference vessel (thermal barrier according to IEC 61010).
