We configure your laboratory autoclave, sterilizer
from the Laboklav series

The Laboklav autoclave can be easily customized to meet your individual sterilization requirements. By simply ticking the relevant boxes, you can answer important questions – additional options like exhaust filtration, rapid cooling, and other features will be automatically added as needed. This way, you can effortlessly configure your Laboklav exactly according to your needs – for efficient and reliable sterilization.

In the second step, you can select the appropriate accessories, while on the third page, you can indicate whether you would like a quote, brochure materials, or a consultation appointment.

Finally, complete your contact details and submit the configuration form. Our team will get in touch with you promptly!

All mandatory fields are marked with an *.

Complete 0%
1 Sterilization requests 2 Accessories 3 Installation & commissioning 4 Contact
What type of sterilization device would you like?*
Laboratory device
pharmaceutical device
medical device
Industrial application
Other process autoclaves

Attention, no product is available for the selection.

Attention, no product is available for the selection.

Attention, no product is available for the selection.

Please click 'Next' and enter your contact details. A staff member will get in touch with you.

Which items should be sterilized?
Solid itemsFor packaged or porous goods, the vacuum option is recommended to achieve optimal ventilation results (Option V is automatically selected).
Glassware
Instrument / Goods packed
Unpackaged instruments
Filters, Tubes, Pipettes
Textiles
The goods are to be dried
Liquids
open / loosely sealed containers without rapid cooling
open / loosely sealed containers with rapid cooling, but loss-free rapid cooling is not required
Heat-sensitive liquids (e.g., discoloration when sugar/proteins are present)
Loss-free sterilization desired
Pressure-tight sealed containers

If liquid media are autoclaved multiple times a day, we recommend a rapid cooling system to shorten cycle times – Option M (option is selected automatically).

If a liquid loss of approximately 6 - 12% during rapid cooling (Option M) is undesirable, the support pressure option S is additionally required (options are selected automatically).

For the sterilization of pressure-resistant sealed containers in an air-steam mixture, you require rapid cooling M with the support pressure option S and fan option L (options are selected automatically).

Waste / DestructionAccording to the state of the art as per DIN 58951, pre-vacuum (Option V) is the appropriate ventilation method for open and sealed waste bags.
Waste / Destruction
How often will the sterilizer be used?If liquids are sterilized at least twice daily, we recommend the rapid cooling option – Option M (automatically selected).
Once a week
Daily
Twice daily
Three times daily
Is your laboratory assigned to biosafety level 2 or higher?*For safety/protection level 2 or higher, exhaust air filtration is mandatory* (Option FA is automatically selected). *Refer to BioStoffV/TRBA 100 or GenTSV for details.
Yes
No
How large should the chamber volume be?*For vertical units with a chamber volume of 100 liters or more, we recommend a lift (accessory) to simplify loading and unloading.
25 liters
55 liters
80 liters
100 liters
135 liters
160 liters
195 liters
Do you require a device in a horizontal or vertical configuration?*Tip: The autoclaves of the Laboklav 55-195 series are available both as tabletop and floor-standing units (conversion possible at any time).
Horizontal
Vertical

Loading capacity of standard laboratory bottles Laboklav 55 Horizontal



volume quantity
250 ml 44
500 ml 15
1.000 ml 11
2.000 ml 6

Loading capacity of standard laboratory bottles Laboklav 25



volume quantity
250 ml 12
500 ml 9
1.000 ml 5

Loading capacity of standard laboratory bottles Laboklav ECO 80 / Laboklav 80 Vertical



volume quantity
250 ml 84
500 ml 28
1.000 ml 18
2.000 ml 10

Loading capacity of standard laboratory bottles Laboklav 100 Vertical



volume quantity
250 ml 105
500 ml 42
1.000 ml 27
2.000 ml 10

Loading capacity of standard laboratory bottles Laboklav ECO 135 / Laboklav 135 Vertical



volume quantity
250 ml 124
500 ml 42
1.000 ml 30
2.000 ml 16

Loading capacity of standard laboratory bottles Laboklav 160 Vertical



volume quantity
250 ml 155
500 ml 63
1.000 ml 45
2.000 ml 16

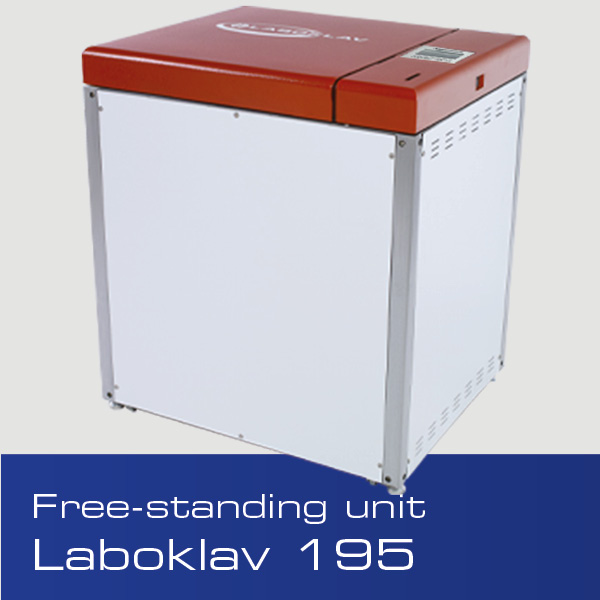

Loading capacity of standard laboratory bottles Laboklav 195 Vertical



volume quantity
250 ml 186
500 ml 63
1.000 ml 45
2.000 ml 24

Loading capacity of standard laboratory bottles Laboklav 135 Horizontal



volume quantity
250 ml 80
500 ml 25
1.000 ml 18
2.000 ml 9

Loading capacity of standard laboratory bottles Laboklav 100 Horizontal



volume quantity
250 ml 72
500 ml 24
1.000 ml 16
2.000 ml 8

Loading capacity of standard laboratory bottles Laboklav 55 Vertical



volume quantity
250 ml 63
500 ml 14
1.000 ml 9
2.000 ml 5

Loading capacity of standard laboratory bottles Laboklav 80 Horizontal



volume quantity
250 ml 60
500 ml 20
1.000 ml 14
2.000 ml 8

Loading capacity of standard laboratory bottles Laboklav 160 Horizontal



volume quantity
250 ml 80
500 ml 26
1.000 ml 18
2.000 ml 10

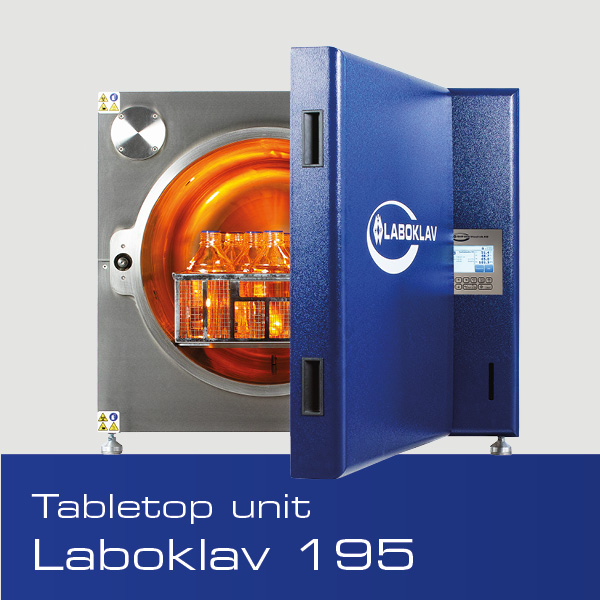

Loading capacity of standard laboratory bottles Laboklav 195 Horizontal



Flaschenart quantity
250 ml 120
500 ml 39
1.000 ml 27
2.000 ml 15

Please select a product from the following products:

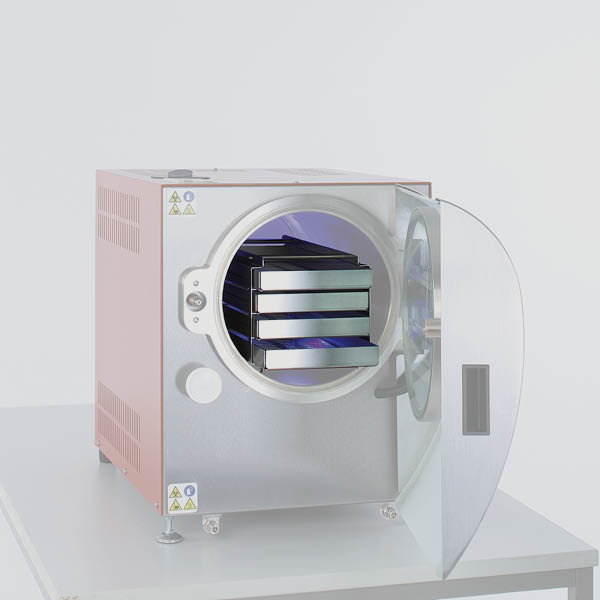

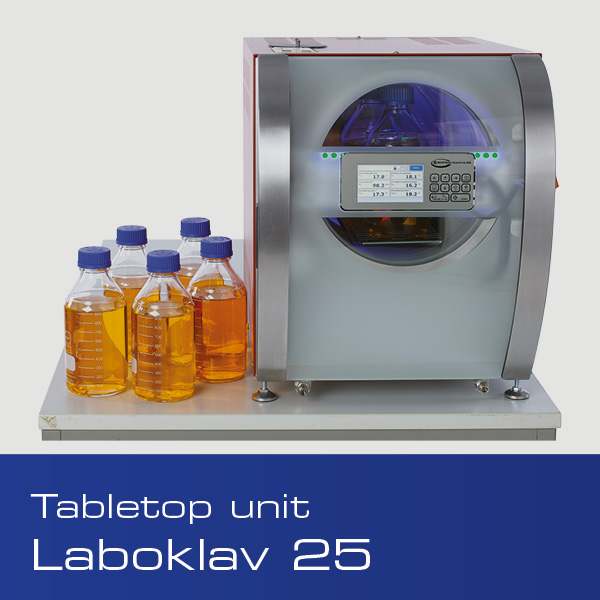

LABOKLAV 25B - tabletop unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 25 Base unit
External Dimensions (B x H x T): 435 x 560 x 680 mm
Weight (nett): approx. 65 kg


25 liter chamber volume

Chamber dimensions (diameter x depth): ø 265 x 450 mm

Standard steam generator
Power 2 kW

configured as a tabletop unit
available in red
with a glass lid to observe the processes in the chamber
colored LEDs visualize the operating status

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

LABOKLAV ECO 80 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV ECO 80 Base unit
External Dimensions (B x H x T): 740 x 915 x 600 mm
Weight (nett): approx. 165 kg


80 liter chamber volume

Chamber dimensions (diameter x depth): ø 410 x 750 mm

Heating elements located under the chamber floor
Power 3 kW


configured as floor-standing unit
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

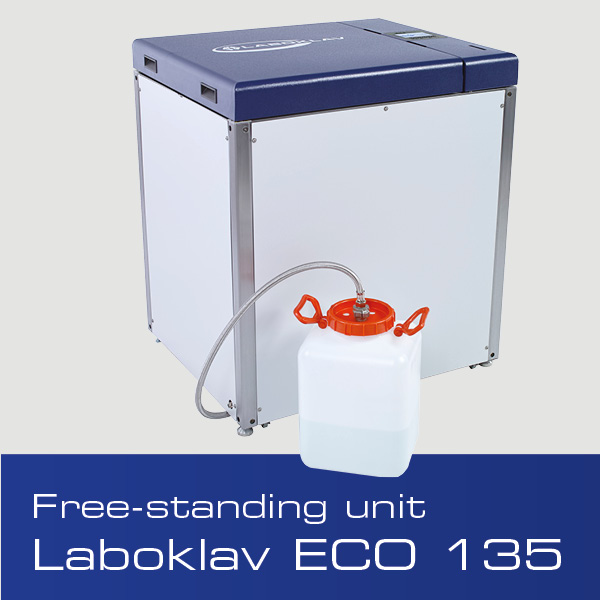

LABOKLAV ECO 135 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV ECO 135 Base unit
External Dimensions (B x H x T): 840 x 935 x 700 mm
Weight (nett): approx. 205 kg


135 liter chamber volume

Chamber dimensions (diameter x depth): ø 500 x 730 mm

Heating elements located under the chamber floor
Power 6 kW


configured as floor-standing unit
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

LABOKLAV 55 - tabletop unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 55 B Base unit
External Dimensions (B x H x T): 740 x 600 x 765 mm
Weight (nett): approx. 125 kg


55 liter chamber volume

Chamber dimensions (diameter x depth): ø 410 x 460 mm

Standard steam generator
Power 6,6 kW

configured as a tabletop unit (Conversion to a free-standing unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

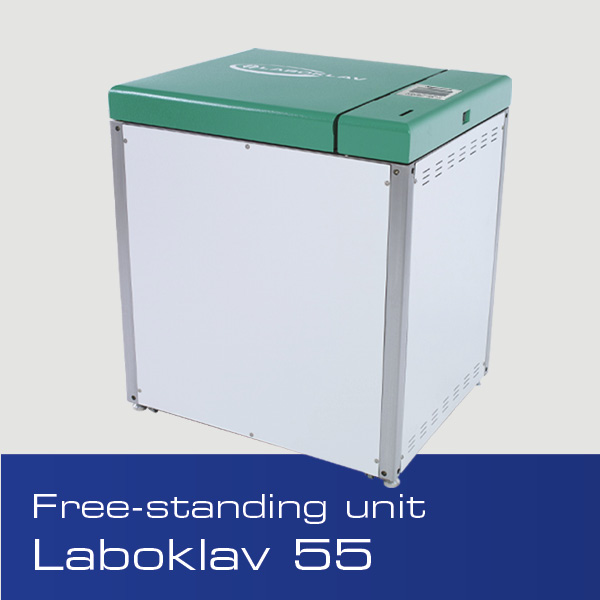

LABOKLAV 55 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 55 B Base unit
External Dimensions (B x H x T): 740 x 765 x 600 mm
Weight (nett): approx. 125 kg


55 liter chamber volume

Chamber dimensions (diameter x depth): ø 410 x 460 mm

Standard steam generator
Power 6,6 kW

configured as a free-standing unit (Conversion to a tabletop unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

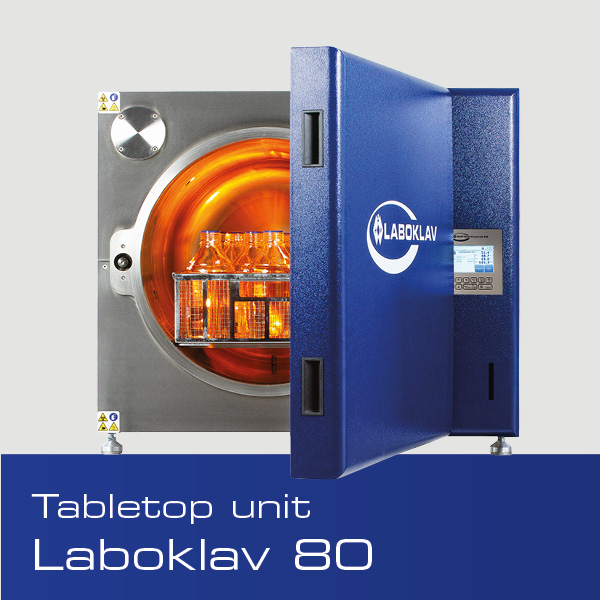

LABOKLAV 80 - tabletop unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 80 B Base unit
External Dimensions (B x H x T): 740 x 600 x 915 mm
Weight (nett): approx. 165 kg


80 liter chamber volume

Chamber dimensions (diameter x depth): ø 410 x 610 mm

Standard steam generator
Power 6,6 kW

configured as a tabletop unit (Conversion to a free-standing unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

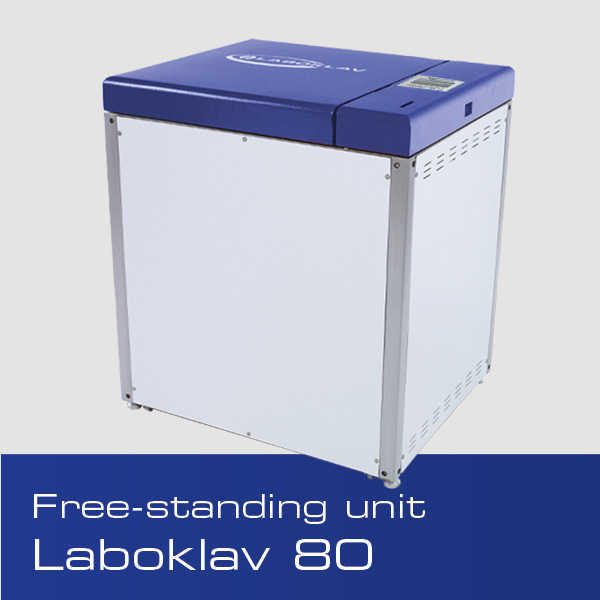

LABOKLAV 80 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 80 B Base unit
External Dimensions (B x H x T): 740 x 915 x 600 mm
Weight (nett): approx. 165 kg


80 liter chamber volume

Chamber dimensions (diameter x depth): ø 410 x 610 mm

Standard steam generator
Power 6,6 kW

configured as a free-standing unit (Conversion to a tabletop unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

LABOKLAV 100 - tabletop unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 100 B Base unit
External Dimensions (B x H x T): 740 x 600 x 1.065 mm
Weight (nett): approx. 195 kg


100 liter chamber volume

Chamber dimensions (diameter x depth): ø 410 x 760 mm

Standard steam generator
Power 6,6 kW

configured as a tabletop unit (Conversion to a free-standing unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

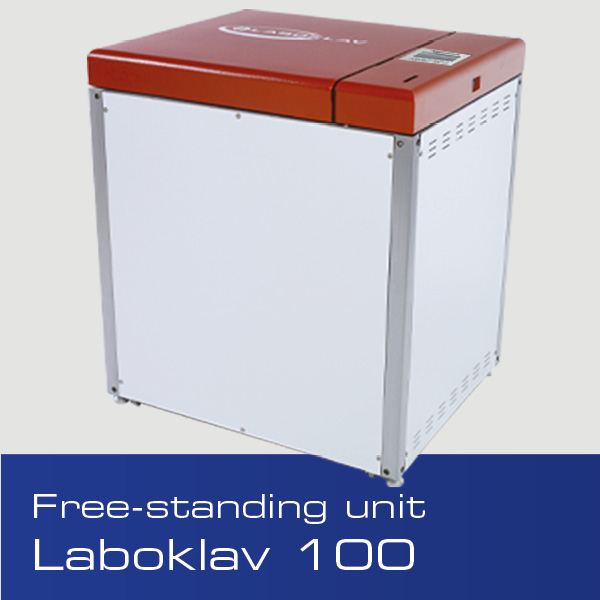

LABOKLAV 100 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 100 B Base unit
External Dimensions (B x H x T): 740 x 1.065 x 600 mm
Weight (nett): approx. 195 kg


100 liter chamber volume

Chamber dimensions (diameter x depth): ø 410 x 760 mm

Standard steam generator
Power 6,6 kW

configured as a free-standing unit (Conversion to a tabletop unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

LABOKLAV 135 - tabletop unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 135 B Base unit
External Dimensions (B x H x T): 840 x 700 x 965 mm
Weight (nett): approx. 205 kg


135 liter chamber volume

Chamber dimensions (diameter x depth): ø 500 x 660 mm

Standard steam generator
Power 10 kW

configured as a tabletop unit (Conversion to a free-standing unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

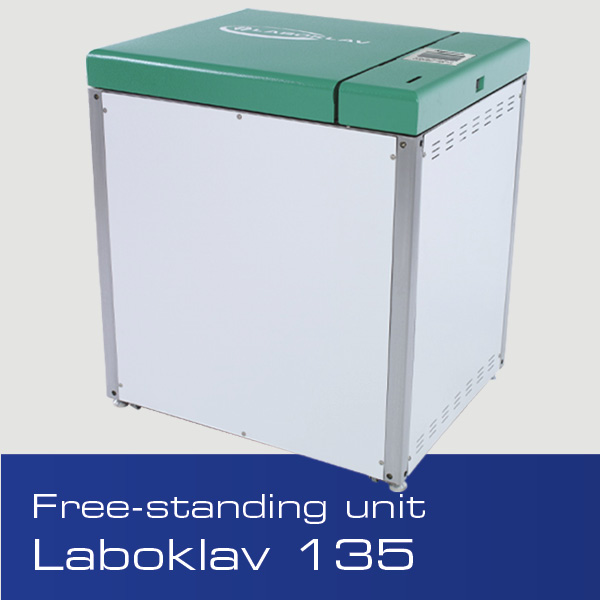

LABOKLAV 135 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 135 B Base unit
External Dimensions (B x H x T): 840 x 965 x 700 mm
Weight (nett): approx. 205 kg


135 liter chamber volume

Chamber dimensions (diameter x depth): ø 500 x 660 mm

Standard steam generator
Power 10 kW

configured as a free-standing unit (Conversion to a tabletop unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

LABOKLAV 160 - tabletop unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 160 B Base unit
External Dimensions (B x H x T): 840 x 700 x 1.065 mm
Weight (nett): approx. 220 kg


160 liter chamber volume

Chamber dimensions (diameter x depth): ø 500 x 760 mm

Standard steam generator
Power 10 kW

configured as a tabletop unit (Conversion to a free-standing unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

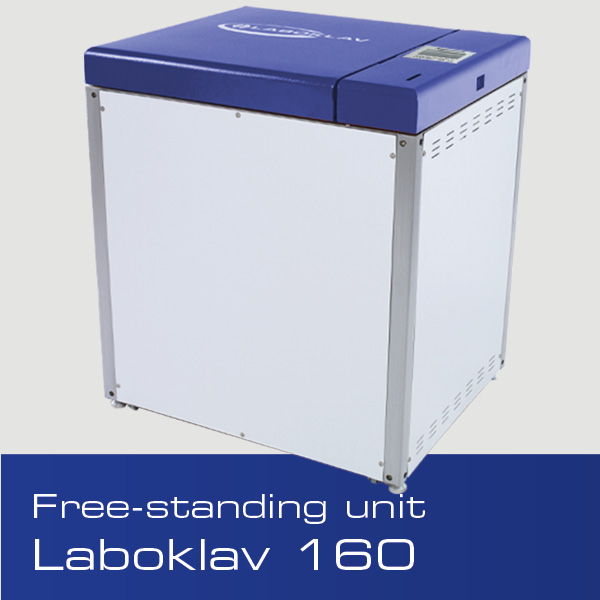

LABOKLAV 160 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 160 B Base unit
External Dimensions (B x H x T): 840 x 1.065 x 700 mm
Weight (nett): approx. 220 kg


160 liter chamber volume

Chamber dimensions (diameter x depth): ø 500 x 760 mm

Standard steam generator
Power 10 kW

configured as a free-standing unit (Conversion to a tabletop unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

LABOKLAV 195 - tabletop unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 195 B Base unit
External Dimensions (B x H x T): 840 x 700 x 1.215 mm
Weight (nett): approx. 255 kg


195 liter chamber volume

Chamber dimensions (diameter x depth): ø 500 x 990 mm

Standard steam generator
Power 10 kW

configured as a tabletop unit (Conversion to a free-standing unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

LABOKLAV 195 - free-standing unitBase unit, options are automatically added after configuration.
Select

Select

LABOKLAV 195 B Base unit
External Dimensions (B x H x T): 840 x 1.215 x 700 mm
Weight (nett): approx. 255 kg


160 liter chamber volume

Chamber dimensions (diameter x depth): ø 500 x 990 mm

Standard steam generator
Power 10 kW

configured as a free-standing unit (Conversion to a tabletop unit is possible at any time)
available in three different colors

Sterilization of liquids in open and loosely sealed containers, glassware, unpackaged instruments, and waste in open disposal bags



+ Expansion stages, see below
(automatically selected for the current configuration)

Yes, I have marked a Laboklav ☝ with “ Select ” and would like to proceed now.

Configuration levels (required due to the selected configuration)

Option M: Fast recooling
Required
Option S: Counter pressure
Required
Option L: Radial fan
Required
Option V: Pre-vacuum and drying vacuum
Required
Option FA: Exhaust air filtration
Required
No
No configuration levels required
Berechnung, ob Weiter oder nicht!!!
0.00
Back Next
Complete 25%
1 Sterilization requests 2 Accessories 3 Installation & commissioning 4 Contact
Please select the desired color.

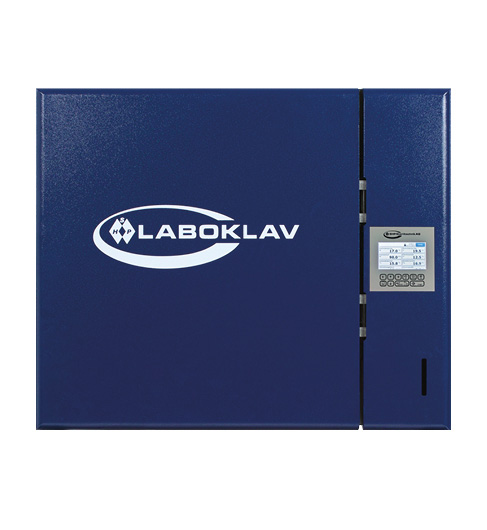

Blue
Blue

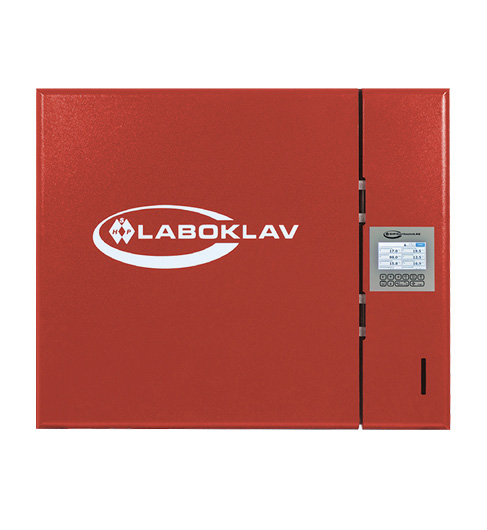

Red
Red

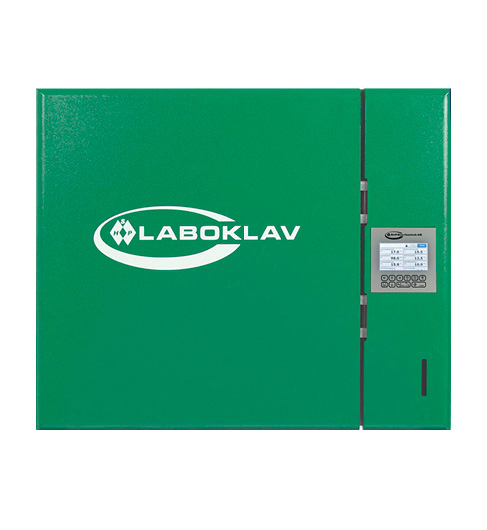

Green
Green
Please select the desired color.
Blue
Blue
Red
Red
Green
Green
Would you like to document your cycles?
If so, in what format?Documentation of the cycles is recommended according to DIN 58951 from biosafety level 2.
Integrated needle printer
Documentation software (SegoSoft)
Already included as standard:
  • State-of-the-art multicolor touch panel
  • Internal GB storage
  • Data transfer via network connection (LAN)
  • Comprehensive batch log: All relevant process data, error messages, and batch details, complemented by a graphical analysis, are clearly summarized
  • USB data transfer: Automatic copying of all data to a USB stick
Are special programs desired?The autoclave you selected already includes many programs as standard. If you require additional programs, please activate this field.
We require additional software
Do you need a compressor?You have selected a product with counter pressure. Do you need a compressor, or do you have an on-site compressed air connection?
An external compressor is required
Do you wish for an easier way to load the horizontal autoclave?The right accessories make working with the autoclave easier and optimize the load capacity and cycle times.
A loading system is required

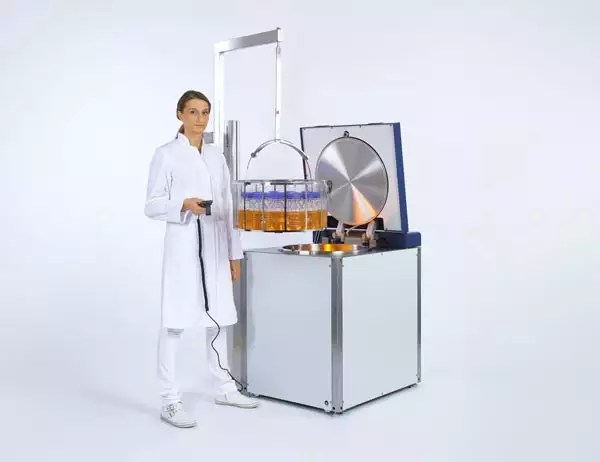

Do you wish for an easier way to load the vertical autoclave?The right accessories make working with the autoclave easier and optimize the load capacity and cycle times.
A lifting device is required
Additional accessories for Laboklav laboratory autoclave free-standing unitsPlease select

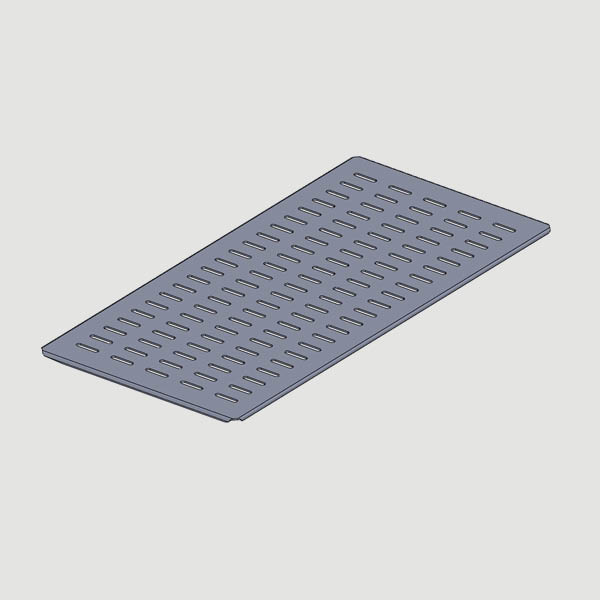

Floor mat (included in the scope of delivery)
Floor mat (included in the scope of delivery)

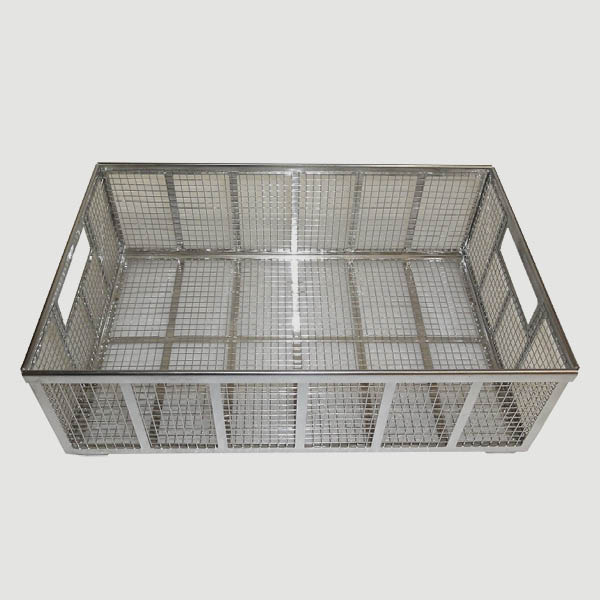

Baskets in various heights
Baskets in various heights
Baskets with closed bottoms
Baskets with closed bottoms
Buckets, also with lids, for waste sterilization
Buckets, also with lids, for waste sterilization

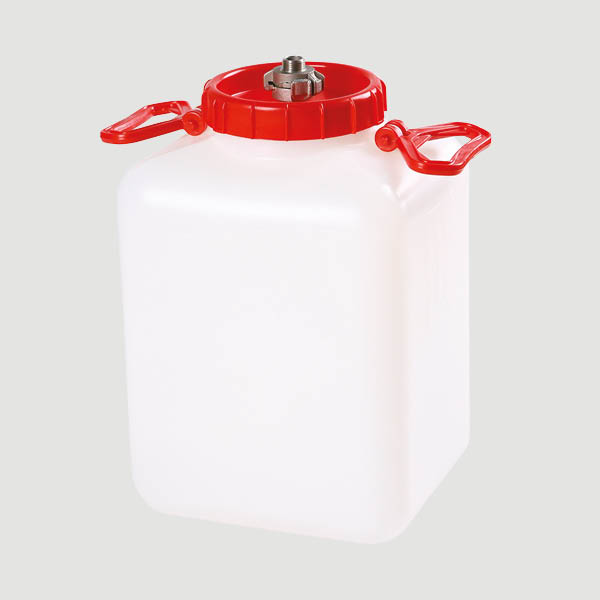

Condensate collection container
Condensate collection container
Additional accessories for Laboklav laboratory autoclave tabletop unitsPlease select
Floor mat (included in the scope of delivery)
Floor mat (included in the scope of delivery)
Baskets in various heights
Baskets in various heights

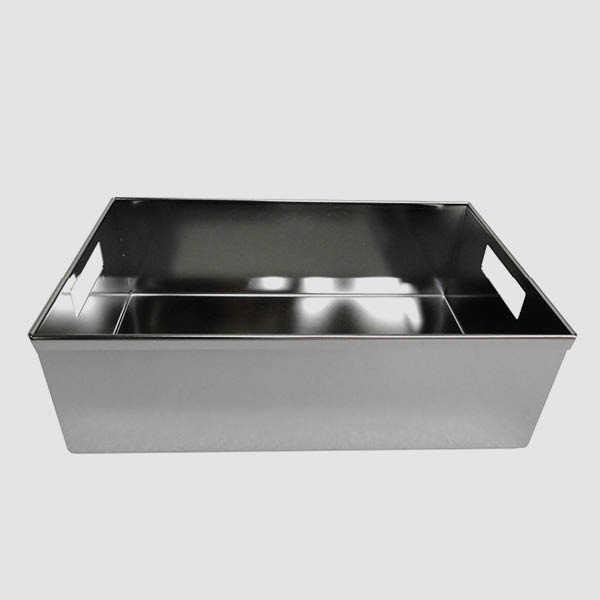

Trays for waste sterilization
Trays for waste sterilization
Base frame (required)
Base frame (required)

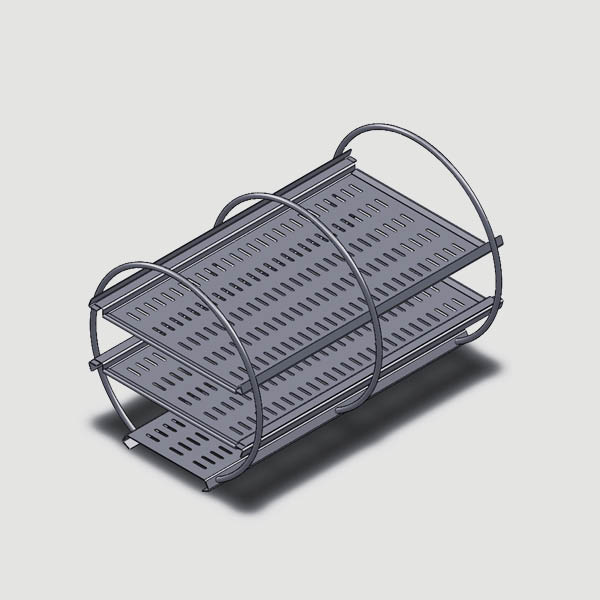

Insert rack with 3 levels
Insert rack with 3 levels
Condensate collection container
Condensate collection container
Accessories for Laboklav 25Please select
Floor mat (included in the scope of delivery)
Floor mat (included in the scope of delivery)

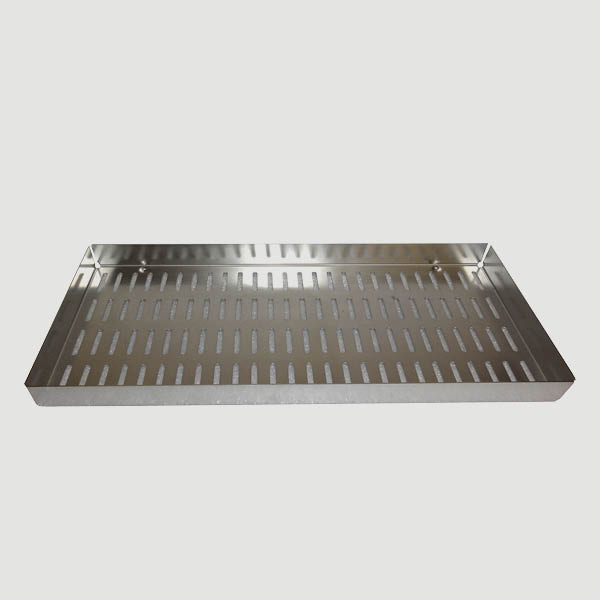

Sieve tray
Sieve tray

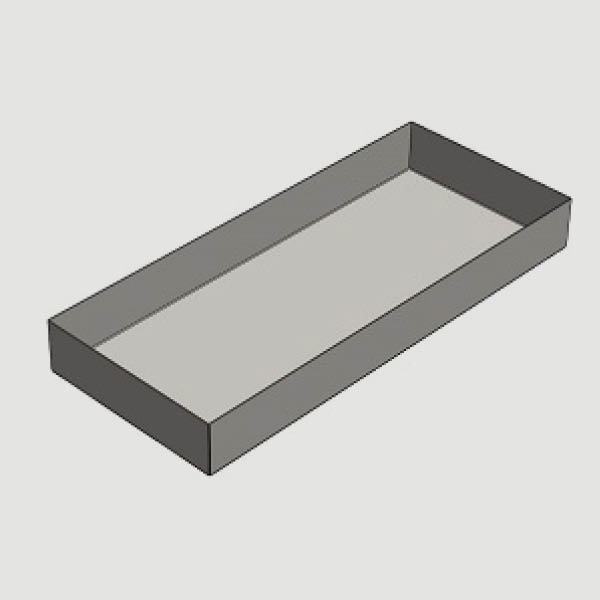

Closed tray
Closed tray
Insert rack with 4 sieve trays
Insert rack with 4 sieve trays

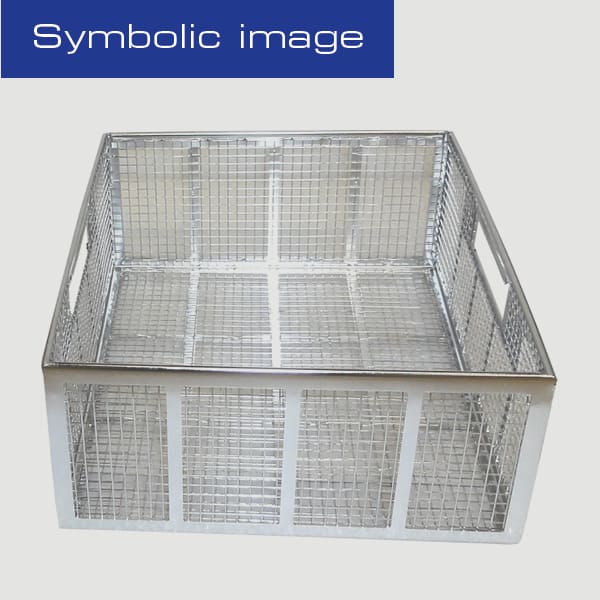

Grid baskets in various heights
Grid baskets in various heights
Do you need assistance with water treatment?
Yes, I kindly request to get in touch with an employee of SHP Wassertechnik GmbH (water analysis, backflow preventers, ion exchange program)
No, I don't need any assistance
External steam connection / cooling circuit
I already have an external steam connection
I already have an external cooling circuit system
Back Next
Complete 50%
1 Sterilization requests 2 Accessories 3 Installation & commissioning 4 Contact
I am interested in the following services(plus shipping and packaging)
On-site installation and commissioning
The location of the commissioning is
The location is as specified in the contact details
Different location (please fill in)
Maintenance contractOur SHP Services GmbH offers brand-independent maintenance services for autoclaves with a pressure-liter volume of up to 1000 liters.
Yes
Qualification / ValidationTo ensure safe and sterile results, your autoclave must meet standards (such as EN 285 and ISO 17665). We regularly qualify and validate the autoclaves to ensure reliable sterilization within defined parameters.
Yes
Performance Qualification (PQ)The Performance Qualification (PQ) ensures that the autoclave reliably delivers the required sterilization performance during daily operation and guarantees the long-term safety and quality of the sterilized products.
Yes
Repair conditionsReceive information about our repair conditions
Yes
Installation Qualification (IQ)The Installation Qualification (IQ) checks the suitability of the installation site, the physical characteristics of the autoclave, and the completeness of the documentation.
Yes
Factory Acceptance Test (FAT)A Factory Acceptance Test (FAT) is conducted to verify whether newly manufactured products (whether a machine or software) operate according to regulations and the customer's specifications.
Yes
Operational Qualification (OQ)The Operational Qualification (OQ) ensures that equipment and systems meet the requirements established in the Design Qualification. Through testing, it is confirmed that the equipment operates properly.
Yes
Back Next
Complete 75%
1 Sterilization requests 2 Accessories 3 Installation & commissioning 4 Contact

What would you like?

I hereby request*
an offer
Brochure material
a consultation appointment
Preferred appointment If you have a specific appointment request, please enter it here. If not, simply leave the field blank.
Please select your preferred appointment typeMultiple selections are possible
by phone
online
on-site
on-site at SHP

Your contact details.

company *
title
First name *
Name *
postcode *
city *
phone *
email *

Technical contact person.

Whom may we contact if we have technical inquiries? *


Contact details of the technical contact person

Name, first name
phone
email *
Term of use *

I agree to the terms of use and the privacy policy and confirm that I have read the information required under Article 13 of the GDPR.

send message
Back Next
