Steam sterilizers | Laboratory autoclaves
    Laboklav Series 44x

    FOR MEDIUM LOAD CAPACITIES AND LIMITED SPACE.

    The autoclaves in the LABOKLAV 44x series are powerful large units with a square sterilization chamber, ideal for small to medium batches or as an addition to large central sterilization units. Available in single- or double-door versions, they offer flexibility for various applications. A flexible media sensor allows for direct temperature measurement in the medium during liquid programs and, thanks to the thermal barrier according to IEC 61010, prevents the chamber door from opening if the media temperature is too high.

    Laboklav 44x

    Laboklav 446 and 449 –
    effective steam sterilization with a chamber volume of 103 to 156 liters

    The Laboklav 446/449 combines state-of-the-art autoclave technology with a well-thought-out design – meeting the highest standards in laboratories, research, diagnostics, and industry.

    The square stainless steel chamber offers optimized usable volume while maintaining a space-saving design, allowing for particularly efficient loading.

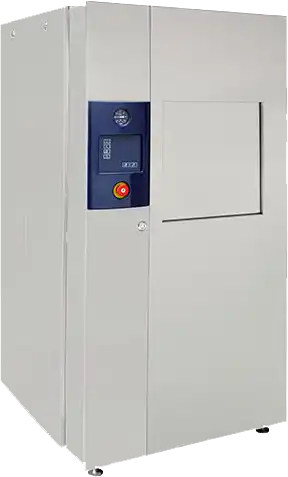

    These devices are versatile and available as both a single-door model and in a pass-through version – ideal for cleanroom applications or for the spatial separation of contaminated and sterile areas.

    With intuitive operation, reliable control technology, and robust construction, the LABOKLAV 446/449 ensures safe, compliant sterilization processes – economically, efficiently, and with future-proof reliability.

    Stainless steel

    Chamber, heating jacket, sliding door, and housing made entirely of high-quality stainless steel

    Sliding doors

    with automatic vertical sliding doors

    Steam generation

    integrated steam generator
    Power: 18 + 2 kW (external)

    2nd monitor

    2nd monitor on the unloading side
    (Standard for pass-through version)

    Touchscreen

    7" color display with touchscreen

    21 Programs

    19 programs + 2 test programs

    Laboklav Series 44x – Compact, powerful, reliable.

    Standard features include

    Siemens PLC, integrated printer, remote control, VNC viewer (app), vacuum system (V), and cooling water saving system

    Accessories

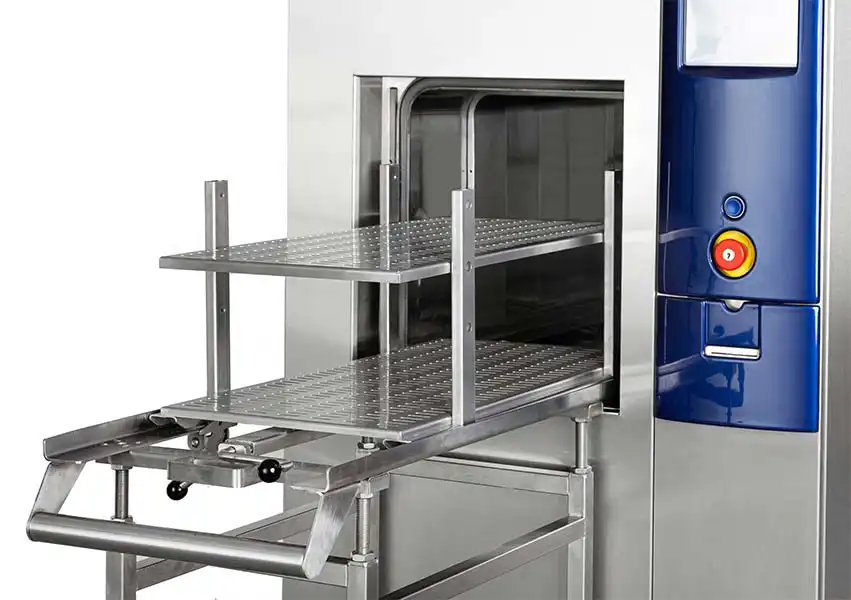

    Transport and loading systems, baskets, trays, compressor, software

    Piping
    The user can choose between two types of piping:

    • Copper/brass pipes and valves
    • Stainless steel piping with Tri-Clamp fittings (optional)

    Housing
    The sterilizer housing is made of stainless steel to facilitate maintenance.

    Chamber Doors
    The chamber doors are made of high-quality stainless steel 316L. A pneumatic drive moves them vertically.

    Seal
    The sterilizer uses a pneumatically operated seal located in the chamber groove to ensure an airtight closure. Once the door is closed, air pressure is applied to the groove, pressing the seal firmly against the door and sealing the chamber.

    Maintenance is quick and easy – the seal can be ejected from the groove at the push of a button. After inserting a new seal, it is pulled back into the groove using the vacuum system, also at the push of a button.

    Water Ring Vacuum Pump
    The sterilizer is equipped with an efficient water ring vacuum pump that removes air from the chamber. The pump can achieve an ultimate vacuum of -93 kPa (7 kPa absolute). To reduce vibration, it is mounted on anti-vibration pads.

    The feed water used during vacuum generation is separated from the air, cooled, and recirculated to the pump to minimize water consumption.

    Valves
    Pneumatic control valves ensure precise regulation of steam flow into and out of the chamber.

    Validation Ports
    The sterilization chamber is equipped with two measurement ports:

    • Connection for a pressure gauge (pipe thread ISO 228-G1/2 "A)
    • Connection for a temperature sensor (pipe thread ISO 228-G1 "A)

    LCD Touchscreen
    The sterilizer features a clearly readable 7" LCD touchscreen with an intuitive and user-friendly interface.

    Air Intake Filter
    For cycles with vacuum drying, ambient air is introduced. An integrated sterile air filter ensures this air is sterile – removing 99.999% of particles sized 0.3 µm or larger.

    Steam Interlock Door Switch
    Prevents steam from entering the chamber when the door is not securely closed.

    Safety Valves
    Safety valves are an important safety feature in pressure equipment. Their primary function is to protect life and property in the event of an overpressure incident. For this reason, LABOKLAV 44x sterilizers are equipped with three safety valves connected to the following components:

    - Pressure vessel of the steam generator
    - Sterilization chamber
    - Door sealing system

    Emergency Stop
    The emergency stop switches are located on the loading and unloading sides (for double-door versions). They serve two functions:
    - Immediate stop of a moving door (either opening or closing) and activation of an alarm
    - Interruption of an ongoing sterilization process, closing of all valves supplying the chamber with media, and shutdown of the steam generator heaters (for sterilizers with integrated steam generator)

    Safety Bar
    Each door is equipped with a safety bar located at the top of the door. This prevents injuries to personnel and damage to products when the door is in motion.

    Water Level Sensors in the Steam Generator
    The steam generator is equipped with two water level sensors:
    - Upper sensor – helps maintain a constant water level
    - Lower sensor – switches off the heaters when the water level drops below a defined safe minimum

    Pressure Monitoring
    Two analog pressure gauges, located on the upper front of the device, display the current pressure in the chamber and in the steam generator.

    Steam Condensate and Cooling
    To ensure safe disposal of condensate, it is cooled to below 60°C before being discharged. This also ensures that the drainage pipes are not damaged by heat.

    Thermal Protection of the Steam Generator
    Sterilizers with an integrated steam generator have additional overheating protection. A temperature limiter shuts off the heaters if the boiler body temperature exceeds safe limits.

    Optional for the Laboklav 44x series steam sterilizers

    Laboklav Series 44x – Compact, powerful, reliable.

    Option M: Rapid Cooling
    (with integrated rapid cooling system)

    A powerful rapid cooling system for liquid sterilization significantly reduces cycle times and enables multiple sterilization cycles per working day.

    Option S: Counter Pressure
    (for open vessels)
    only in connection with Option M

    When the cooling system is expanded with the support counter pressure option, liquids in open containers can be sterilized without loss, further reducing the cycle time.

    Exhaust air filtration – to protect the user and the environment

    An exhaust filter system protects users and the environment from harmful germs that may be released during chamber ventilation, enabling the use of the autoclave in laboratories starting from biosafety level 2.

    Air Detector

    In autoclaves or sterilizers, an air detector is used to identify air bubbles or accumulations that could interfere with the sterilization process.

    Bio Barrier

    A Bio Barrier is a protective barrier designed to securely separate clean and unclean areas.

    Stainless Steel Piping / Triclamp

    The stainless steel piping offers corrosion resistance, hygiene, easy cleaning, and durability, making it the preferred choice. It is also available in a version with stainless steel valves and Triclamp fittings.

    Technical Data

    LABOKLAV 446

    Single door

    Chamber Volume

    109 Ltr.

    Chamber dimensions
    (W x H x D mm)



    400 x 400 x 700

    Outer dimensions
    (W x H x D mm)



    800 x 1.615 x 900

    Net weight

    460 kg

    Maximum Allowable
    Pressure (PS)


    2.8 bar

    Maximum Allowable
    Temperature (TS)


    142°C

    Heating power int.
    steam generator


    18 kW

    Heating power
    ext. steam connection


    2 kW

    Electrical
    connection

    3N~ + PE, 230/400 V,
    50–60 Hz, 32 A

    Sterilization
    temperature

    110 – 136 °C,
    adjustable

    STU capacity
    (300 x 300 x 600 mm)


    1

    LABOKLAV 446

    Double doors

    Chamber Volume

    103 Ltr.

    Chamber dimensions
    (W x H x D mm)



    400 x 400 x 650

    Outer dimensions
    (W x H x D mm)



    800 x 1.615 x 900

    Net weight

    460 kg

    Maximum Allowable
    Pressure (PS)


    2.8 bar

    Maximum Allowable
    Temperature (TS)


    142°C

    Heating power int.
    steam generator


    18 kW

    Heating power
    ext. steam connection


    2 kW

    Electrical
    connection

    3N~ + PE, 230/400 V,
    50–60 Hz, 32 A

    Sterilization
    temperature

    110 – 136 °C,
    adjustable

    STU capacity
    (300 x 300 x 600 mm)


    1

    Laboklav 44x steam sterilizers comply with all the required standards and guidelines listed below:

    • 2014/68/EU: Pressure Equipment Directive
    • EN 61010-1:2010: Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
    • EN 61010-2-040:2015: Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 2
    • EN 61326-1:2013: Electrical equipment for measurement, control, and laboratory use - EMC requirements - Part 1: General requirements

      All of our service staff are "Qualified Persons according to the Pressure Equipment Directive".

    CUSTOMER SERVICE is a top priority for us.

    Our service network ensures short response times and competent service technicians with many years of experience in steam sterilization. Our fair prices and the service-friendly design of our devices keep costs low. We take care of your equipment.

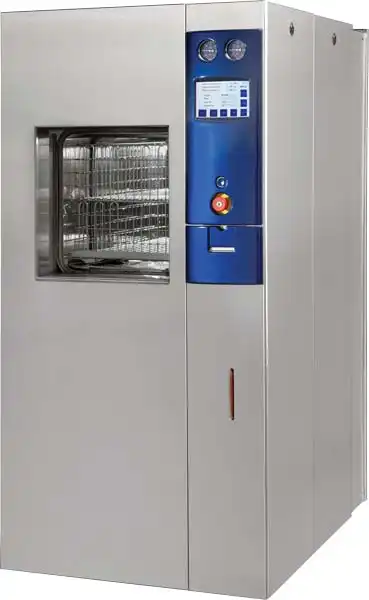

    LABOKLAV 44x V

    basic unit
    (Vacuum as standard)

    LABOKLAV 44x MV

    with integrated rapid recooling

    LABOKLAV 44x MSV

    with integrated rapid recooling and counter pressure


    Each appliance is equipped with a vacuum system (V), a cooling water saving system (K) and a flexible reference sensor (R) as standard.

    Exhaust air filtration (FA) is available as an option.

    Laboratory Autoclave Laboklav 44x
